Maestro Victoria LO CSB

SHAPE 000
SOUNDBOARD Solid Western Red Cedar
BACK & SIDES Solid Cocobolo

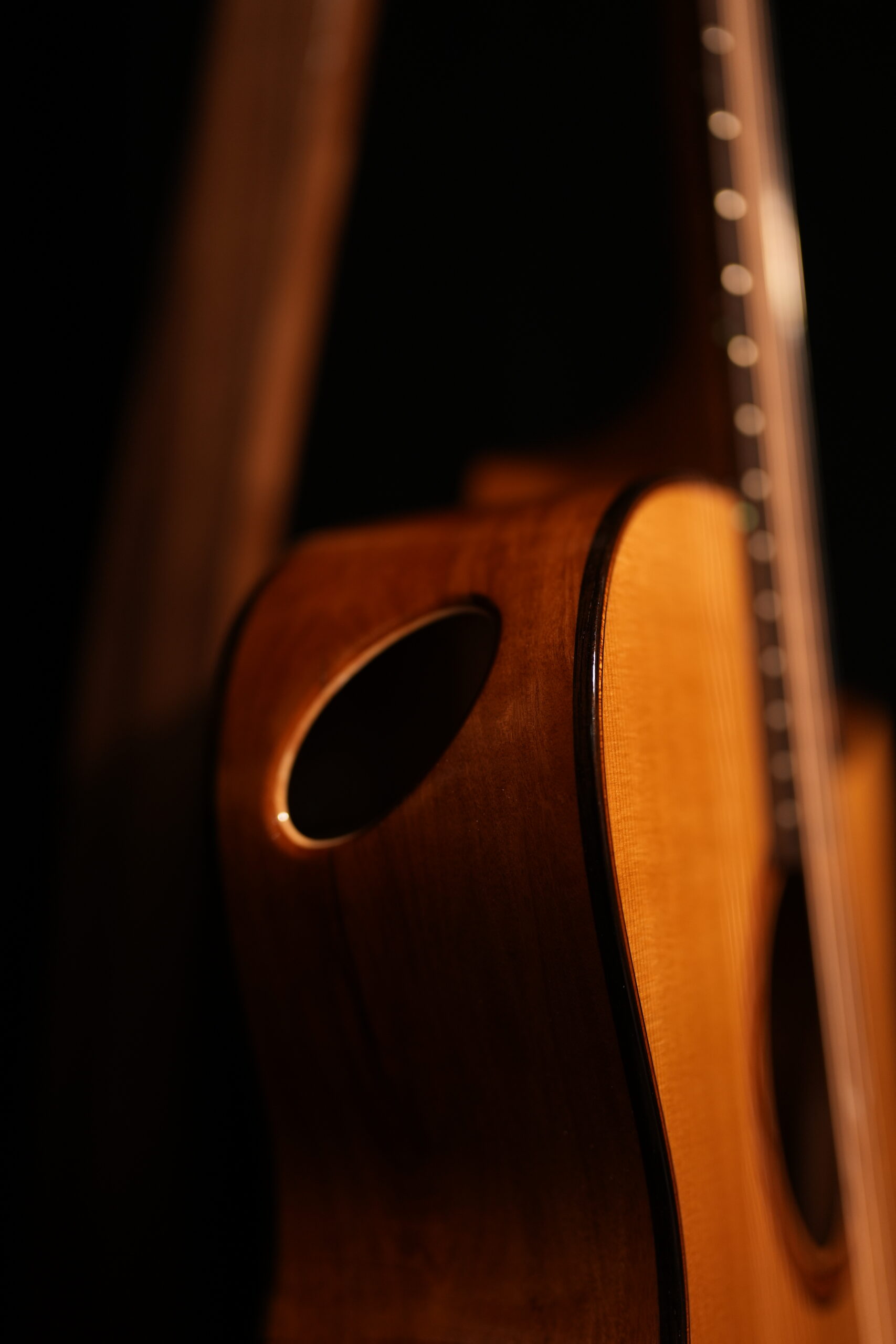

SIGNATURE OPTIONS Florentine Cutaway, Soundport & Beveled Armrest
ROSETTE Western Red Cedar
PURFLING Wooden Lines
LINING Solid Lining
BRACING Advanced Hybrid Bracing
BRACING MATERIAL Quarter-Sawn Sitka Spruce
NECK Carbon Fiber Reinforced Khaya Mahogany with Ebony Strip
NECK JOINT Dovetail
FINGERBOARD Ebony
BRIDGE Ebony
NUT & SADDLE MATERIAL Unbleached Bone
BRIDGE PINS Ebony
HEADSTOCK STYLE Modern Maestro
MACHINE HEADS Grover Rotomatic 18:1
STRINGS Elixir Phosphor Bronze Nanoweb Light .012 – .053
FINISH Polyurethane Super High Gloss
SETUP PLEK Setup

LENGTH 1020 mm
BODY LENGTH 486 mm
LOWER BOUT 394 mm
WAIST 250 mm
DEPTH 102 mm
SCALE LENGTH 650 mm
NUT WIDTH 45 mm
STRING SPACING – NUT 36.5 mm
AVE. STRING SPACING – NUT 7.3 mm
STRING SPACING – SADDLE 54.4 mm
AVE. STRING SPACING – SADDLE 10.89 mm
FINGERBOARD RADIUS 14″
NECK THICKNESS – NUT 24 mm
NECK THICNKESS – 12th FRET 34 mm
